[Tutorial] Cpu key recovery with Team Xecuter DGX [English]
GUIDE TO CPUKEY RECOVERY WITH TEAM XECUTER'S DGX ON ALL DASHBOARD VERSIONS (XBOX 360 SLIM)
With DGX you can *only* recover the cpukey from a slim console updated to any official dashboard version
Starting today all slim console are "RGH doable"
We can start using the latest version of J-Runner software and reading the nand as usual twice or more.
Now we have our nand backup.
We can now flash the modified ECC that TX will release in the next hours, there will be 3 different ECC like showed below)
-Trinity
-Corona 4GB
-Corona 16MB
The relative version of motherboard can be found checking the Ampere on the rear stickers, in this case we have a Corona 250GB (9.6A)
At this point we can install the DGX chip. The points are all the same as other glitchcip with the exception of power source 5V instead 3,3V, it's advisable to use thicker cable then AWG30 for better timing.

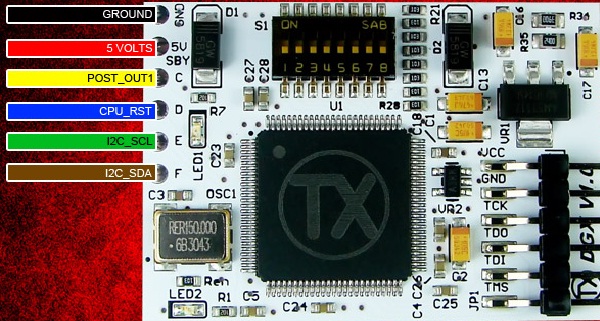

Here's a picture of new top product from TX team:
We are going now to show how to connect DGX to the motherboard:
Here you can find 5 volt power source:
As said before, the other points are the same of any classic glitchip, if you are not familiar witch TX coolrunner naming:
C- Post
D- CPU RESET
E- SCL
F – SDA
GND - Ground
Now we have to set the switches on DGX to fit the different motherboard revision:
-all ON for Corona
-from 1 to 7 ON and 8 OFF for Trinity
Final work:
Switch on the console, cross fingers, look at led blinking and recover the cpukey over the LAN connection, autoscan in J-runner or manual setting IP identified through router settings
Some important notes:
-DGX addon recovery time increase drammatically with the wrong tickness of cables, so use the bundled ones.
-On Trinity console the recovery time is increased due to the particular type of hack on this console. Sometime the system goes in loop, you can realize this earing unusual noise from the cpu fan "tac-tac-tac". In this case just reboot the console and try again.
-CPU_RST cable shorter is better, about 10cm is good for quick cpukey recovery time.
we are proud to show a short video of a Corona cpukey recovery: )
http://youtu.be/hJX9C_0RAGU
Thanks to RGH2 MODDERS for the sample and technical explanation of the hack
TUTORIAL MADE BY "THE PUSHER" FOR CONSOLEOPEN FORUM. ANY REPRODUCTION, EVEN PARTIAL, is FORBIDDEN WITHOUT THE APPROVAL OF THE AUTHOR
Translation by guerrierodipace & Raiden
