lettura nor con progskeet 1.1 e zif56

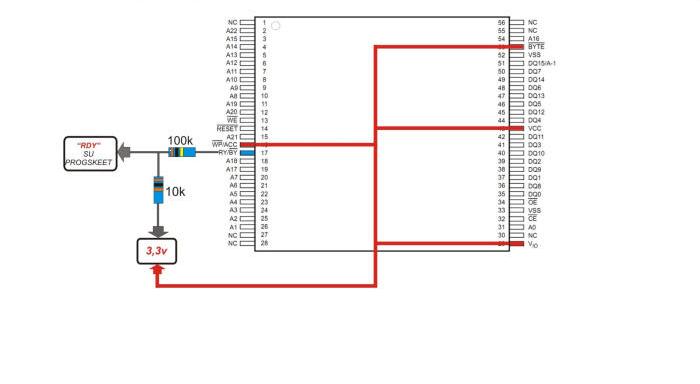

ho dissaldato una nor modello samsung k8q28... e sto provando a leggerla con un progskeet munito di adattatore zif socket tsop56. quando leggo il cfi sembra essere tutto ok:
Decoding CFI
[2013-04-12T10:47:42] - VCC = 2.7V - 3.6V
[2013-04-12T10:47:42] - VPP = NA
[2013-04-12T10:47:42] - Timeout per word program = 8us
[2013-04-12T10:47:42] - Timeout for minimum buffer write = NA
[2013-04-12T10:47:42] - Timeout per individual block erase = 512ms
[2013-04-12T10:47:42] - Timeout for full chip erase = NA
[2013-04-12T10:47:42] - Maximum timeout per word program = 128us
[2013-04-12T10:47:42] - Maximum timeout for write buffer = NA
[2013-04-12T10:47:42] - Maximum timeout per block erase = 8s
[2013-04-12T10:47:42] - Maximum timeout for full chip erase = NA
[2013-04-12T10:47:42] - Device size = 8MiB (8388608)
[2013-04-12T10:47:42] - Maximum number of bytes for buffered write = 1
[2013-04-12T10:47:42] - Flash device interface code description = 16bits only
[2013-04-12T10:47:42] - Number of erase block regions = 3
[2013-04-12T10:47:42] - Region 1
[2013-04-12T10:47:42] - Region 1 number of erase blocks = 8
[2013-04-12T10:47:42] - Region 1 block size = 8Kbyte
[2013-04-12T10:47:42] - Region 2
[2013-04-12T10:47:42] - Region 2 number of erase blocks = 126
[2013-04-12T10:47:42] - Region 2 block size = 64Kbyte
[2013-04-12T10:47:42] - Region 3
[2013-04-12T10:47:42] - Region 3 number of erase blocks = 8
[2013-04-12T10:47:42] - Region 3 block size = 8Kbyte
[2013-04-12T10:47:42] Terminato

quando inizio il dump vero e proprio fallisce la verifica di molti settori:
Dumping address 0x0
[2013-04-12T10:48:23] Verification of address 0x0 failed
[2013-04-12T10:48:23] Dumping address 0x20000
[2013-04-12T10:48:23] Verification of address 0x20000 failed
[2013-04-12T10:48:23] Dumping address 0x40000
[2013-04-12T10:48:23] Dumping address 0x60000
[2013-04-12T10:48:24] Dumping address 0x80000
[2013-04-12T10:48:24] Dumping address 0xa0000
[2013-04-12T10:48:24] Dumping address 0xc0000
[2013-04-12T10:48:24] Dumping address 0xe0000
[2013-04-12T10:48:25] Dumping address 0x100000
[2013-04-12T10:48:25] Verification of address 0x100000 failed
[2013-04-12T10:48:25] Dumping address 0x120000
[2013-04-12T10:48:25] Verification of address 0x120000 failed
[2013-04-12T10:48:25] Dumping address 0x140000
[2013-04-12T10:48:25] Verification of address 0x140000 failed
[2013-04-12T10:48:25] Dumping address 0x160000
[2013-04-12T10:48:26] Verification of address 0x160000 failed
[2013-04-12T10:48:26] Dumping address 0x180000
[2013-04-12T10:48:26] Verification of address 0x180000 failed
[2013-04-12T10:48:26] Dumping address 0x1a0000
[2013-04-12T10:48:26] Verification of address 0x1a0000 failed
[2013-04-12T10:48:26] Dumping address 0x1c0000
[2013-04-12T10:48:27] Verification of address 0x1c0000 failed
[2013-04-12T10:48:27] Dumping address 0x1e0000
[2013-04-12T10:48:27] Verification of address 0x1e0000 failed
[2013-04-12T10:48:27] Dumping address 0x200000
[2013-04-12T10:48:27] Verification of address 0x200000 failed
[2013-04-12T10:48:27] Dumping address 0x220000
[2013-04-12T10:48:27] Verification of address 0x220000 failed
[2013-04-12T10:48:27] Dumping address 0x240000
[2013-04-12T10:48:28] Verification of address 0x240000 failed
[2013-04-12T10:48:28] Dumping address 0x260000
[2013-04-12T10:48:28] Verification of address 0x260000 failed
[2013-04-12T10:48:28] Dumping address 0x280000
[2013-04-12T10:48:28] Verification of address 0x280000 failed
[2013-04-12T10:48:28] Dumping address 0x2a0000
[2013-04-12T10:48:28] Verification of address 0x2a0000 failed
[2013-04-12T10:48:28] Dumping address 0x2c0000
[2013-04-12T10:48:29] Verification of address 0x2c0000 failed
[2013-04-12T10:48:29] Dumping address 0x2e0000
[2013-04-12T10:48:29] Verification of address 0x2e0000 failed
[2013-04-12T10:48:29] Dumping address 0x300000
[2013-04-12T10:48:29] Verification of address 0x300000 failed
[2013-04-12T10:48:29] Dumping address 0x320000
[2013-04-12T10:48:29] Verification of address 0x320000 failed
[2013-04-12T10:48:29] Dumping address 0x340000
[2013-04-12T10:48:30] Verification of address 0x340000 failed
[2013-04-12T10:48:30] Dumping address 0x360000
[2013-04-12T10:48:30] Verification of address 0x360000 failed
[2013-04-12T10:48:30] Dumping address 0x380000
[2013-04-12T10:48:30] Verification of address 0x380000 failed
[2013-04-12T10:48:30] Dumping address 0x3a0000
[2013-04-12T10:48:31] Verification of address 0x3a0000 failed
[2013-04-12T10:48:31] Dumping address 0x3c0000
[2013-04-12T10:48:31] Verification of address 0x3c0000 failed
[2013-04-12T10:48:31] Dumping address 0x3e0000
[2013-04-12T10:48:31] Verification of address 0x3e0000 failed
[2013-04-12T10:48:31] Dumping address 0x400000
[2013-04-12T10:48:31] Verification of address 0x400000 failed
[2013-04-12T10:48:31] Dumping address 0x420000
[2013-04-12T10:48:32] Verification of address 0x420000 failed
[2013-04-12T10:48:32] Dumping address 0x440000
[2013-04-12T10:48:32] Verification of address 0x440000 failed
[2013-04-12T10:48:32] Dumping address 0x460000
[2013-04-12T10:48:32] Verification of address 0x460000 failed
[2013-04-12T10:48:32] Dumping address 0x480000
[2013-04-12T10:48:33] Verification of address 0x480000 failed
[2013-04-12T10:48:33] Dumping address 0x4a0000
[2013-04-12T10:48:33] Verification of address 0x4a0000 failed
[2013-04-12T10:48:33] Dumping address 0x4c0000
[2013-04-12T10:48:33] Verification of address 0x4c0000 failed
[2013-04-12T10:48:33] Dumping address 0x4e0000
[2013-04-12T10:48:34] Verification of address 0x4e0000 failed
[2013-04-12T10:48:34] Dumping address 0x500000
[2013-04-12T10:48:34] Verification of address 0x500000 failed
[2013-04-12T10:48:34] Dumping address 0x520000
[2013-04-12T10:48:34] Verification of address 0x520000 failed
[2013-04-12T10:48:34] Dumping address 0x540000
[2013-04-12T10:48:34] Verification of address 0x540000 failed
[2013-04-12T10:48:34] Dumping address 0x560000
[2013-04-12T10:48:35] Verification of address 0x560000 failed
[2013-04-12T10:48:35] Dumping address 0x580000
[2013-04-12T10:48:35] Verification of address 0x580000 failed
[2013-04-12T10:48:35] Dumping address 0x5a0000
[2013-04-12T10:48:35] Verification of address 0x5a0000 failed
[2013-04-12T10:48:35] Dumping address 0x5c0000
[2013-04-12T10:48:35] Verification of address 0x5c0000 failed
[2013-04-12T10:48:35] Dumping address 0x5e0000
[2013-04-12T10:48:36] Verification of address 0x5e0000 failed
[2013-04-12T10:48:36] Dumping address 0x600000
[2013-04-12T10:48:36] Verification of address 0x600000 failed
[2013-04-12T10:48:36] Dumping address 0x620000
[2013-04-12T10:48:36] Verification of address 0x620000 failed
[2013-04-12T10:48:36] Dumping address 0x640000
[2013-04-12T10:48:36] Verification of address 0x640000 failed
[2013-04-12T10:48:36] Dumping address 0x660000
[2013-04-12T10:48:37] Dumping address 0x680000
[2013-04-12T10:48:37] Dumping address 0x6a0000
[2013-04-12T10:48:37] Dumping address 0x6c0000
[2013-04-12T10:48:38] Dumping address 0x6e0000
[2013-04-12T10:48:38] Dumping address 0x700000
[2013-04-12T10:48:38] Dumping address 0x720000
[2013-04-12T10:48:39] Dumping address 0x740000
[2013-04-12T10:48:39] Dumping address 0x760000
[2013-04-12T10:48:40] Dumping address 0x780000
[2013-04-12T10:48:40] Dumping address 0x7a0000
[2013-04-12T10:48:40] Dumping address 0x7c0000
[2013-04-12T10:48:41] Dumping address 0x7e0000
[2013-04-12T10:48:42] Dumping address 0x800000
[2013-04-12T10:48:42] Verification of address 0x800000 failed
[2013-04-12T10:48:42] Dumping address 0x820000
[2013-04-12T10:48:42] Verification of address 0x820000 failed
[2013-04-12T10:48:42] Dumping address 0x840000
[2013-04-12T10:48:42] Verification of address 0x840000 failed
[2013-04-12T10:48:42] Dumping address 0x860000
[2013-04-12T10:48:43] Verification of address 0x860000 failed
[2013-04-12T10:48:43] Dumping address 0x880000
[2013-04-12T10:48:43] Verification of address 0x880000 failed
[2013-04-12T10:48:43] Dumping address 0x8a0000
[2013-04-12T10:48:43] Verification of address 0x8a0000 failed
[2013-04-12T10:48:43] Dumping address 0x8c0000
[2013-04-12T10:48:43] Verification of address 0x8c0000 failed
[2013-04-12T10:48:43] Dumping address 0x8e0000
[2013-04-12T10:48:44] Verification of address 0x8e0000 failed
[2013-04-12T10:48:44] Dumping address 0x900000
[2013-04-12T10:48:44] Verification of address 0x900000 failed
[2013-04-12T10:48:44] Dumping address 0x920000
[2013-04-12T10:48:44] Verification of address 0x920000 failed
[2013-04-12T10:48:44] Dumping address 0x940000
[2013-04-12T10:48:45] Verification of address 0x940000 failed
[2013-04-12T10:48:45] Dumping address 0x960000
[2013-04-12T10:48:45] Verification of address 0x960000 failed
[2013-04-12T10:48:45] Dumping address 0x980000
[2013-04-12T10:48:45] Verification of address 0x980000 failed
[2013-04-12T10:48:45] Dumping address 0x9a0000
[2013-04-12T10:48:45] Verification of address 0x9a0000 failed
[2013-04-12T10:48:45] Dumping address 0x9c0000
[2013-04-12T10:48:46] Verification of address 0x9c0000 failed
[2013-04-12T10:48:46] Dumping address 0x9e0000
[2013-04-12T10:48:46] Verification of address 0x9e0000 failed
[2013-04-12T10:48:46] Dumping address 0xa00000
[2013-04-12T10:48:46] Verification of address 0xa00000 failed
[2013-04-12T10:48:46] Dumping address 0xa20000
[2013-04-12T10:48:47] Verification of address 0xa20000 failed
[2013-04-12T10:48:47] Dumping address 0xa40000
[2013-04-12T10:48:47] Verification of address 0xa40000 failed
[2013-04-12T10:48:47] Dumping address 0xa60000
[2013-04-12T10:48:48] Verification of address 0xa60000 failed
[2013-04-12T10:48:48] Dumping address 0xa80000
[2013-04-12T10:48:48] Verification of address 0xa80000 failed
[2013-04-12T10:48:48] Dumping address 0xaa0000
[2013-04-12T10:48:49] Verification of address 0xaa0000 failed
[2013-04-12T10:48:49] Dumping address 0xac0000
[2013-04-12T10:48:49] Verification of address 0xac0000 failed
[2013-04-12T10:48:49] Dumping address 0xae0000
[2013-04-12T10:48:50] Verification of address 0xae0000 failed
[2013-04-12T10:48:50] Dumping address 0xb00000
[2013-04-12T10:48:50] Verification of address 0xb00000 failed
[2013-04-12T10:48:50] Dumping address 0xb20000
[2013-04-12T10:48:50] Verification of address 0xb20000 failed
[2013-04-12T10:48:50] Dumping address 0xb40000
[2013-04-12T10:48:51] Verification of address 0xb40000 failed
[2013-04-12T10:48:51] Dumping address 0xb60000
[2013-04-12T10:48:52] Verification of address 0xb60000 failed
[2013-04-12T10:48:52] Dumping address 0xb80000
[2013-04-12T10:48:52] Verification of address 0xb80000 failed
[2013-04-12T10:48:52] Dumping address 0xba0000
[2013-04-12T10:48:53] Verification of address 0xba0000 failed
[2013-04-12T10:48:53] Dumping address 0xbc0000
[2013-04-12T10:48:53] Verification of address 0xbc0000 failed
[2013-04-12T10:48:53] Dumping address 0xbe0000
[2013-04-12T10:48:53] Verification of address 0xbe0000 failed
[2013-04-12T10:48:53] Dumping address 0xc00000
[2013-04-12T10:48:54] Verification of address 0xc00000 failed
[2013-04-12T10:48:54] Dumping address 0xc20000
[2013-04-12T10:48:54] Verification of address 0xc20000 failed
[2013-04-12T10:48:54] Dumping address 0xc40000
[2013-04-12T10:48:55] Verification of address 0xc40000 failed
[2013-04-12T10:48:55] Dumping address 0xc60000
[2013-04-12T10:48:55] Verification of address 0xc60000 failed
[2013-04-12T10:48:55] Dumping address 0xc80000
[2013-04-12T10:48:55] Verification of address 0xc80000 failed
[2013-04-12T10:48:55] Dumping address 0xca0000
[2013-04-12T10:48:56] Verification of address 0xca0000 failed
[2013-04-12T10:48:56] Dumping address 0xcc0000
[2013-04-12T10:48:56] Verification of address 0xcc0000 failed
[2013-04-12T10:48:56] Dumping address 0xce0000
[2013-04-12T10:48:56] Verification of address 0xce0000 failed
[2013-04-12T10:48:56] Dumping address 0xd00000
[2013-04-12T10:48:56] Verification of address 0xd00000 failed
[2013-04-12T10:48:56] Dumping address 0xd20000
[2013-04-12T10:48:57] Verification of address 0xd20000 failed
[2013-04-12T10:48:57] Dumping address 0xd40000
[2013-04-12T10:48:57] Verification of address 0xd40000 failed
[2013-04-12T10:48:57] Dumping address 0xd60000
[2013-04-12T10:48:57] Verification of address 0xd60000 failed
[2013-04-12T10:48:57] Dumping address 0xd80000
[2013-04-12T10:48:57] Verification of address 0xd80000 failed
[2013-04-12T10:48:57] Dumping address 0xda0000
[2013-04-12T10:48:58] Dumping address 0xdc0000
[2013-04-12T10:48:58] Dumping address 0xde0000
[2013-04-12T10:48:58] Dumping address 0xe00000
[2013-04-12T10:48:59] Dumping address 0xe20000
[2013-04-12T10:48:59] Dumping address 0xe40000
[2013-04-12T10:48:59] Dumping address 0xe60000
[2013-04-12T10:48:59] Dumping address 0xe80000
[2013-04-12T10:49:00] Dumping address 0xea0000
[2013-04-12T10:49:00] Verification of address 0xea0000 failed
[2013-04-12T10:49:00] Dumping address 0xec0000
[2013-04-12T10:49:00] Verification of address 0xec0000 failed
[2013-04-12T10:49:00] Dumping address 0xee0000
[2013-04-12T10:49:00] Verification of address 0xee0000 failed
[2013-04-12T10:49:00] Dumping address 0xf00000
[2013-04-12T10:49:01] Dumping address 0xf20000
[2013-04-12T10:49:01] Dumping address 0xf40000
[2013-04-12T10:49:01] Dumping address 0xf60000
[2013-04-12T10:49:01] Dumping address 0xf80000
[2013-04-12T10:49:02] Dumping address 0xfa0000
[2013-04-12T10:49:02] Dumping address 0xfc0000
[2013-04-12T10:49:02] Verification of address 0xfc0000 failed
[2013-04-12T10:49:02] Dumping address 0xfe0000
[2013-04-12T10:49:02] Verification of address 0xfe0000 failed
[2013-04-12T10:49:03] Terminato

con questa configurazione r8/r7 devono essere chiusi o aperti?
l'alimentazione alla nor la devo prendere esterna oppure direttamente dal progskeet?

Se hai letto non ci son problemi... il pullup a rdy l' hai fatto?

si il pull up l'ho fatto.

inutile dire che ho controllato tutti i collegamneti con il tester almeno 100 volte. non è che bisogna cambiare delle impostazioni nel software di lettura?

IN teoria no... hai dettato il relay a 200?

se volessi alimentare la nor con alimentazione esterna 3.3v, devo togliere la resistenza da r8 e lasciare la r7. dopodichè i vss(gnd) della nor li collego al negativo dell'alimentazione esterna e collego i 3.3v sui piedini 43/29/53/16 poi li invio alla resistenza da 10 k e da questa a rdy(insieme con la 100 k con partenza dal piedino 17). sul progskeet dissaldo i 3.3 e lascio solo i gnd giusto?

Citazione:

---

Originariamente Scritto da Titty

IN teoria no... hai dettato il relay a 200?

---

no non l'ho fatto

con relay a 200 stessa situazione.

ho dissaldato tutto zif incluso, domani risaldo l'adattatore e tutto il resto, credo sia un problema di fili incrociati ed interferenze.

sto riassemblando il PROGSKEET SU ZIF SOCKET TSOP56, volevo delle info prima di procedere.
Sto utilizzando il segente schema:
Allegato 10416
dallo schema i pin wp/byte/vcc/vio(16/53/43/29 pin dello zif) li collego tra di loro e poi ad una resistenza da 10k collegata a sua volta ad una da 100k(di cui l'estremità in serie con la 10k va sul pad rdy del progskeet e l'altra al piedino 17 dello zif) quello che non capisco è se il collegamento tra il pin 16(wp) dello zif ed il pad gp3(wp) del progskeet va fatto comunque; se lo collego al pad 16 del progskeet, essendo il wp collegato all'alimentazione non porto anche questa sul pad ?
posso collegare wp/byte/vcc/vio al al pad 3.3v del progskeet e da questo pad punto alla 10K
spero di essere stato abbastanza chiaro.

Non ho capito che vuoi fare...

praticamente sto seguendo questo tutorial:
http://www.consoleopen.com/forum/tut...flash-nor.html

e mi sono fermato sui punti da collegare tra di loro: wp/byte/vcc/vio questi punti li collego tra di loro sul zif socket poi li porto su una resistenza da 10 k.
ora mi chiedo oltre a collegarli tra di loro , devo collegare il pin 16 (wp) del socke a l pad gp3 del progskeet? se devo farlo non porto sul pad gp3 del progskeet anche i 3,3?

No 3.3V fai VCC ecc ecc
Poi sempre dal 3.3 esci con il pullup

Citazione:

---

Originariamente Scritto da Titty

No 3.3V fai VCC ecc ecc
Poi sempre dal 3.3 esci con il pullup

---

perdonami ma non ho ancora capito, collego al 3,3v del progskeet i punti wp/vcc/byte/vio del socket giusto?
poi dal pad 3.3 del progskeet faccio il pull e fin qui ci siamo, il precedente punto wp=al piedino 16 della nor lo devo attaccare al gp3 del progskeet oppure no?

Assolutamente si altrimenti che senso avrebbe?

ok ci ri provo e ti faccio sapere

ho riassemblato tutto, quindi è normale che sul pad gp3 (wp) del progskeet e il pad 3,3v ci sia continuità.
ora il progskeet lo uso con r8 e r7 chiusi giusto?

ok lettura effettuata senza alcun problema, ora procedo con la verifica del dump e tutto il resto.


p.s.
grazie mille a tutti per aver risposto alle mie domande, mi rendo conto che la maggior parte delle volte le risposte eran più che ovvie.

lettura della nor eseguita correttamente, l'ho validata seguendo questa guida(http://www.consoleopen.com/forum/tut...and-e-nor.html).
ho problemi in scrittura con gli ultimi settori, scrive e verifica fino ad un certo punto dopodichè gli ultimi settori non riesce a verificarli.

p.s.
avendo un fw 3.56 nativo, sto seguendo questa guida per il downgrade : http://www.consoleopen.com/forum/tut...56-nativo.html
fate attenzione perchè nel pacchetto downgrade_v3_patcher bisogna fare dei cambi nel file di testo e precisamente:

patch1;0C0010;6FFFE0
patch2;7C0010;6FFFE0
patch3;80000;20000
patch4;A0000;20000
patch5;40000;20000
patch6;60000;20000
in
1;0C0010;6FFFE0
2;7C0010;6FFFE0
3;80000;20000
4;A0000;20000
5;40000;20000
6;60000;20000
altrimenti non trova i file per fare la patch.

risolto tutto, ho cambiato cavo usb e mi ha scritto l'intero file senza problemi.
