Slitta non funzionante - componente mancante "strappato"

[nrg17]

Buongiorno a tutti, ho tra le mani una switch modello 2017/2018 con la slitta non funzionante.
Sostituito slitta problema persiste.

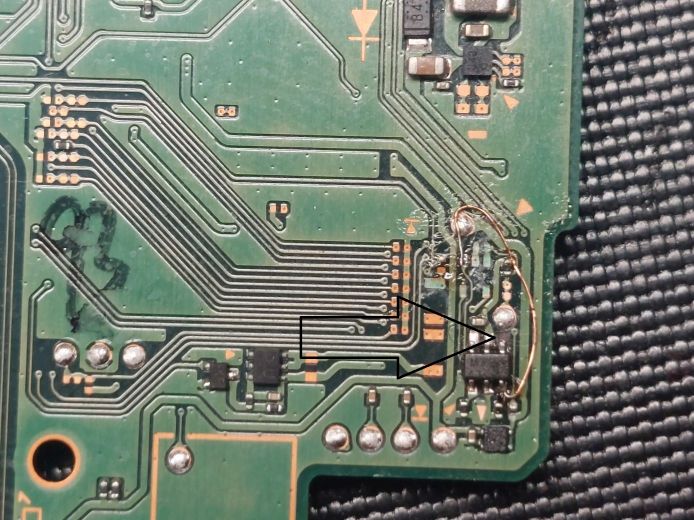

Controllo e mi accordo del componente in foto strappato.
Recuperato componente da una mobo donatrice, il problema è la pista strappata che non capisco dove vada.
Ho verificato con una scheda sana e in effetti non trovo dove finisca la piazzola evidenziata.

Qualcuno può aiutarmi?

[Lomba77]

Ciao qui trovi le scansioni dei vari layer della pcb. [url]https://bitbuilt.net/forums/index.php?threads/nintendo-switch.3998/[/url]

[nrg17]

Grazie! Finalmente ...

[Razorbacktrack]

Esiste anche la versione interattiva:

[url]https://balika011.hu/switch/[/url]

[nrg17]

molto interessante
