BwE NOR validator e NAND (beta)

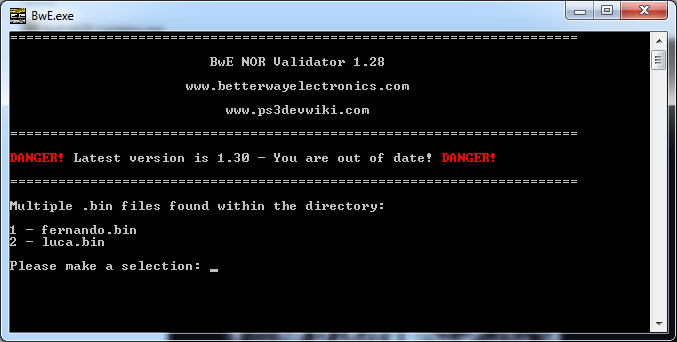

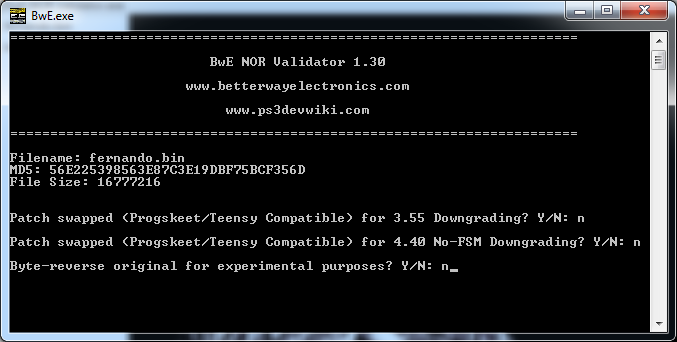

BwE NOR Validator
Arriva alla versione 1.31 l'immancabile software per chi effettua downgrade sulle Ps3 dotate di NOR.
Non ha una funzione di autoupdate ma fa il check di nuove versioni all'avvio.
Il o i dump da validare devono trovarsi nella stessa cartella del programma.
Entrambi i programmi creano e aprono nel browser un file .html con l'elenco dei controlli effettuati e ogni singolo risultato dei vari test.
L'autore del tool è l'australiano BwE
Citazione:
Changelog 1.31
1.31 - 27/05/2013 : added eid4 + fixed bug in entropy (note: possibly final version, unless adding firmware revisions/new consoles)
Changelog precedenti
1.30 - 21/05/2013 : completely rewritten eid, cisd, ccsd + added more validations to it, upgraded other minor validations. all due to upcoming nand validator (note: possibly final version, unless adding firmware revisions/new consoles)
1.28 - 15/05/2013 : completely rewritten cvtrm validation + added more validations to it, upgraded/perfected entropy
1.25 - 13/05/2013 : added entropy check for metldr/bootldr
1.24 - 06/05/2013 : added more information to suit newly discovered ps3 data, improved validation, added a tip for bad md5's, removed version forcing
1.23 - 29/04/2013 : improved validation, added 4.41 ofw information
1.22 - 16/04/2013 : added 115 more validations + changed statistic range for bootldr + other small boring changes
1.21 - 11/04/2013 : patch3 error fix.
1.20 - 10/04/2013 : added new console data, removed 3.56 patch (replaced with 4.40), added protection against using old validator, changed corruption check (again!), added quick info for console.
1.19 - 09/04/2013 : changed metldr statistic range, minver check (to suit refurbished ps3s), corruption changes
1.18 - 08/04/2013 : upgraded cisd/cell_ext_nor_area/metldr validations to suit unique metldr.2 revision, changed corruption output (again).
1.17 - 08/04/2013 : changed repetition check, changed corruption output, bugfix
1.16 - 02/04/2013 : added rogero's 4.40 patch, changed options, added 25+ md5's, changed stats range and id check
1.15 - 25/03/2013 : added 4.40 ofw information and optimised some code
1.14 - 19/03/2013 : improved validation of the flash-region table
1.13 - 18/03/2013 : better handling for metldr.2, more id detections and md5s, added byte reversal option for experimenting with E3
1.12 - 16/03/2013 : md5 bug fix, changed id detections and general improvements
1.11 - 08/03/2013 : improved patching structure, added 3 musketeers patch (3.56 patching), code optimization
1.10 - 04/03/2013 : added 25+ validations + changed results & outputs + bugfix
1.09 - 02/03/2013 : improved corruption checks for metldr/bootldr + more validations + old coreos bug fix (again) + changed some results
1.08 - 29/02/2013 : added timeout for version check + added 16bit corrupt sequence check + fixed long outputs + fixed metldr ident bug + changed some warning/danger results + changed 00/ff results
1.06 - 27/02/2013 : fixed bug when handling old coreos versions + fixed .self md5 list
1.05 - 25/02/2013 : added approx 220 more validations + changed statistic ranges + latest version check + fixes to metldr/bootldr
1.02 - 22/02/2013 : more md5's & authid checks + changed some results.
1.01 - 16/02/2013 : authid check bugfix
1.00 - 15/02/2013 : first public release
readme:
================================================== ================================================== =========================================
__________ __ __ ___________.__ __ .__
\______ \ _____/ |__/ |_ _____________ _ _______ ___.__.\_ _____/| | ____ _____/ |________ ____ ____ |__| ____ ______
| | _// __ \ __\ __\/ __ \_ __ \ \/ \/ /\__ \< | | | __)_ | | _/ __ \_/ ___\ __\_ __ \/ _ \ / \| |/ ___\ / ___/
| | \ ___/| | | | \ ___/| | \/\ / / __ \\___ | | \| |_\ ___/\ \___| | | | \( <_> ) | \ \ \___ \___ \
|______ /\___ >__| |__| \___ >__| \/\_/ (____ / ____|/_______ /|____/\___ >\___ >__| |__| \____/|___| /__|\___ >____ >
\/ \/ \/ \/\/ \/ \/ \/ \/ \/ \/
================================================== ================================================== =========================================
BwE NOR Validator - HTML Output Edition.
Created/Started by BwE on the 14th November 2012 (Because I was too lazy to constantly check everything).
Greetz/Credit: EussNL, Judges, No0bZiLLa, Rogero, Rebug, deank, 3absiso, SCE & PS3 Dev Wiki (+ Its Contributers).
================================================== ================================================== =================
This all in one validator/patcher will interpret the byte orientation, patch for 3.55/4.40 and will then output the results of 2800+ validations via HTML.
How?
1 - Place your .bin/s in the same folder as the validator.
2 - Run the validator and press Start.
3 - A console will appear asking you to select your dump (if you have more than one in the folder).
4 - Make your selection and or select if you watch to patch it (either in its current byte orientation or the opposite).
5 - Wait patiently.
6 - Press Enter at the end to launch the output.
Explanation
After selecting your dump and choosing which patch you want it will begin to process the validation. Once it is finished it will give you a brief count of the results, after this you simply press enter to exit.
The program will then open a html output illustrating everything that has been validated. Scroll through or use the menu at the top and read each section.
If a validation says 'warning' or 'danger' investigate it yourself manually using a hex editor, or contact somebody knowledgeable. Only corruption messages will show you the exact offset to look at, everything else won't so this is where you have to read/learn about it on the ps3devwiki.
Some validations will tell you that you need to patch it, if this is the case then do so and re-validate the patched dump.
If your dump has any 'danger' messages in the per console sections (find them in the menu) then there is a good chance its completely ruined and unfixable. Also, if your dump has a large amount of 'danger' messages then there is a serious issue - bad wiring can be discovered if you have any repetition in the dump.
Areas Of Validation
* Statistics
* First Region Header
* Flash Format
* Flash Region
* Asecure_Loader/Metldr
* Asecure_Loader/Metldr Corrupt Sequences
* Asecure_Loader/Metldr Encrypted Statistics/Entropy
* EID
* EID0
* EID2
* EID3
* EID5
* IDPS
* CISD
* CISD0
* CISD1
* CISD2
* CCSD
* CCSD0
* TRVK_PRG0
* TRVK_PRG1
* TRVK_PKG0
* TRVK_PKG1
* ROS0
* ROS1
* ROS0/1 AuthID's/MD5's
* Revoke/CoreOS MD5's
* CVTRM/VTRM0
* VTRM 1
* Second Region Header
* Second Region Block 0
* Second Region Block 1
* CELL_EXTNOR_AREA
* Lv0ldr/Bootldr
* Lv0ldr/Bootldr Corrupt Sequences
* Lv0ldr/Bootldr Statistics/Entropy
* Minimum Version
* File Digest Keys
* PerConsole Nonce
* Corrupt Sequences
* Repetition
* Authenticiation IDs
================================================== =============================
Changelog
1.30 - 21/05/2013 : completely rewritten eid, cisd, ccsd + added more validations to it, upgraded other minor validations. all due to upcoming nand validator (note: possibly final version, unless adding firmware revisions/new consoles)
1.28 - 15/05/2013 : completely rewritten cvtrm validation + added more validations to it, upgraded/perfected entropy
1.25 - 13/05/2013 : added entropy check for metldr/bootldr
1.24 - 06/05/2013 : added more information to suit newly discovered ps3 data, improved validation, added a tip for bad md5's, removed version forcing
1.23 - 29/04/2013 : improved validation, added 4.41 ofw information
1.22 - 16/04/2013 : added 115 more validations + changed statistic range for bootldr + other small boring changes
1.21 - 11/04/2013 : patch3 error fix.
1.20 - 10/04/2013 : added new console data, removed 3.56 patch (replaced with 4.40), added protection against using old validator, changed corruption check (again!), added quick info for console.
1.19 - 09/04/2013 : changed metldr statistic range, minver check (to suit refurbished ps3s), corruption changes
1.18 - 08/04/2013 : upgraded cisd/cell_ext_nor_area/metldr validations to suit unique metldr.2 revision, changed corruption output (again).
1.17 - 08/04/2013 : changed repetition check, changed corruption output, bugfix
1.16 - 02/04/2013 : added rogero's 4.40 patch, changed options, added 25+ md5's, changed stats range and id check
1.15 - 25/03/2013 : added 4.40 ofw information and optimised some code
1.14 - 19/03/2013 : improved validation of the flash-region table
1.13 - 18/03/2013 : better handling for metldr.2, more id detections and md5s, added byte reversal option for experimenting with E3
1.12 - 16/03/2013 : md5 bug fix, changed id detections and general improvements
1.11 - 08/03/2013 : improved patching structure, added 3 musketeers patch (3.56 patching), code optimization
1.10 - 04/03/2013 : added 25+ validations + changed results & outputs + bugfix
1.09 - 02/03/2013 : improved corruption checks for metldr/bootldr + more validations + old coreos bug fix (again) + changed some results
1.08 - 29/02/2013 : added timeout for version check + added 16bit corrupt sequence check + fixed long outputs + fixed metldr ident bug + changed some warning/danger results + changed 00/ff results
1.06 - 27/02/2013 : fixed bug when handling old coreos versions + fixed .self md5 list
1.05 - 25/02/2013 : added approx 220 more validations + changed statistic ranges + latest version check + fixes to metldr/bootldr
1.02 - 22/02/2013 : more md5's & authid checks + changed some results.
1.01 - 16/02/2013 : authid check bugfix
1.00 - 15/02/2013 : first public release
================================================== =============================
Use at own risk! Valid dumps may be invalid - Invalid dumps may be valid.
There are almost infinite variations of each dump! Have fun and good luck!
Report any bugs or issues to [email]bwe@betterwayelectronics.com[/email] or directly to BwE @ irc.efnet.org #ps3downgrade
Give credit if you are using this for other people!
Made in Australia!
LT 4 AM <3
[ [url=http://www.ps3devwiki.com]PS3 Development Wiki[/url] / [url=http://www.betterwayelectronics.com]BwE[/url] ]

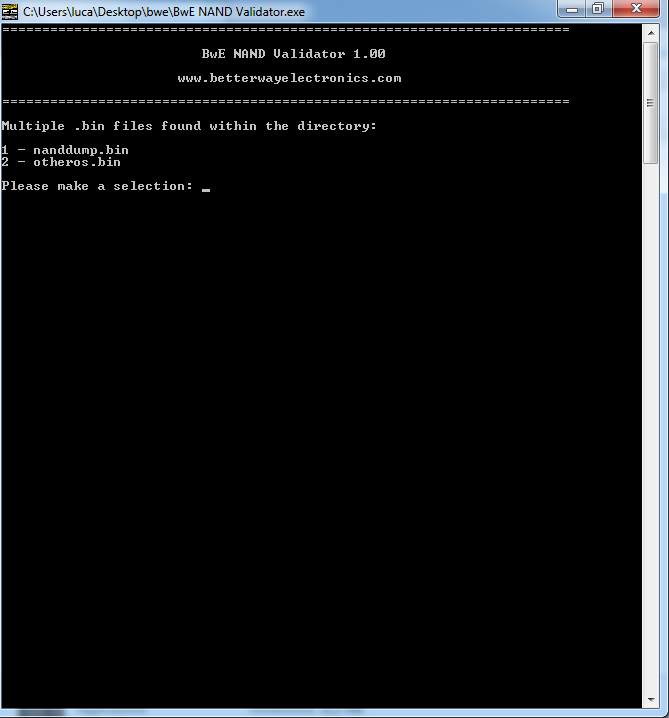

BwE NAND Validator
Prima release pubblica di un validatore di dump per NAND.
Mi raccomando da prendere con cautela il risultato.
Changelog:
Citazione:
Changelog
1.02 - 09/06/2013 : bugfix for patcher (did not fix enough) + added some more MD5's (CFW)
1.01 - 28/05/2013 : bugfix for patcher (mistake from using old nor code)
1.00 - 27/05/2013 : first proper/public release (because I am lazy there will be no loader!)
readme:
================================================== ================================================== =========================================
__________ __ __ ___________.__ __ .__
\______ \ _____/ |__/ |_ _____________ _ _______ ___.__.\_ _____/| | ____ _____/ |________ ____ ____ |__| ____ ______
| | _// __ \ __\ __\/ __ \_ __ \ \/ \/ /\__ \< | | | __)_ | | _/ __ \_/ ___\ __\_ __ \/ _ \ / \| |/ ___\ / ___/
| | \ ___/| | | | \ ___/| | \/\ / / __ \\___ | | \| |_\ ___/\ \___| | | | \( <_> ) | \ \ \___ \___ \
|______ /\___ >__| |__| \___ >__| \/\_/ (____ / ____|/_______ /|____/\___ >\___ >__| |__| \____/|___| /__|\___ >____ >
\/ \/ \/ \/\/ \/ \/ \/ \/ \/ \/
================================================== ================================================== =========================================
BwE NAND Validator - HTML Output Edition.
Created/Started by BwE on the 3rd March 2013 (Because I was pressured to).
Greetz/Credit: EussNL, Judges, No0bZiLLa, Rogero, Rebug, deank, 3absiso, AFP, SCE & PS3 Dev Wiki (+ Its Contributers).
================================================== ================================================== =================
This all in one validator/patcher will patch for 3.55 and will output the results of 2799+ validations via HTML.
================================================== ================================================== =================
How?
1 - Place your .bin/s in the same folder as the validator.
2 - Run the validator and press Start.
3 - A console will appear asking you to select your dump (if you have more than one in the folder).
4 - Make your selection and or select if you watch to patch it (either in its current byte orientation or the opposite).
5 - Wait patiently.
6 - Press Enter at the end to launch the output.
================================================== ================================================== =================
Explanation
After selecting your dump and choosing which patch you want it will begin to process the validation. Once it is finished it will give you a brief count of the results, after this you simply press enter to exit.
The program will then open a html output illustrating everything that has been validated. Scroll through or use the menu at the top and read each section.
If a validation says 'warning' or 'danger' investigate it yourself manually using a hex editor, or contact somebody knowledgeable. Only corruption messages will show you the exact offset to look at, everything else won't so this is where you have to read/learn about it on the ps3devwiki.
Some validations will tell you that you need to patch it, if this is the case then do so and re-validate the patched dump.
If your dump has any 'danger' messages in the per console sections (find them in the menu) then there is a good chance its completely ruined and unfixable. Also, if your dump has a large amount of 'danger' messages then there is a serious issue - bad wiring can be discovered if you have any repetition in the dump.
================================================== ================================================== =================
Areas Of Validation
* Statistics
* First Region Header
* Flash Format
* Flash Region
* Asecure_Loader/Metldr
* Asecure_Loader/Metldr Corrupt Sequences
* Asecure_Loader/Metldr Encrypted Statistics/Entropy
* EID
* EID0
* EID1
* EID2
* EID3
* EID4
* EID5
* IDPS
* CISD
* CISD0
* CISD1
* CISD2
* CCSD
* CCSD0
* TRVK_PRG0
* TRVK_PRG1
* TRVK_PKG0
* TRVK_PKG1
* ROS0
* ROS1
* ROS0/1 AuthID's/MD5's
* CoreOS MD5's
* CVTRM/VTRM0
* VTRM 1
* CELL_EXT_OS_AREA
* OtherOS
* Lv0ldr/Bootldr
* Lv0ldr/Bootldr Corrupt Sequences
* Lv0ldr/Bootldr Statistics/Entropy
* Minimum Version
* File Digest Keys
* PerConsole Nonce
* Corrupt Sequences
* Repetition
* Authenticiation IDs
================================================== ================================================== =================
Changelog
1.00 - 27/05/2013 : first proper/public release (because I am lazy there will be no loader!)
================================================== ================================================== =================
Use at own risk! Valid dumps may be invalid - Invalid dumps may be valid.
There are almost infinite variations of each dump! Have fun and good luck!
Report any bugs or issues to [email]bwe@betterwayelectronics.com[/email] or directly to BwE @ irc.efnet.org #ps3downgrade or irc.ps3sanctuary.com #ps3hax
Give credit if you are using this for other people!
Made in Australia!
LT 4 AM <3
================================================== ================================================== =================
[ [url=http://www.ps3devwiki.com]PS3 Development Wiki[/url] / [url=http://www.betterwayelectronics.com]BwE[/url] ]

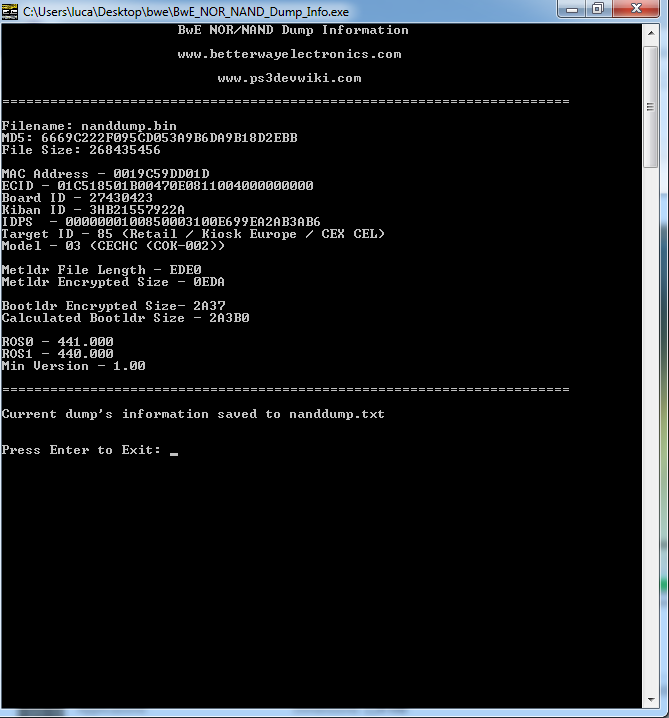

BwE NOR NAND Dump Info
Rilasciato anche un tool che fornisce info dettagliate sui dump.
Link ai download
[URL="http://betterwayelectronics.com/files/BwE_NOR_Validator.rar"]..:: BwE NOR Validator -
download sempre ultima versione ::..[/URL]
[URL="http://betterwayelectronics.com/files/BwE_NAND_Validator.rar"]..:: BwE NAND Validator -
download sempre ultima versione ::..[/URL]
[URL="http://betterwayelectronics.com/files/BwE_NOR_NAND_Dump_Info.rar"]..:: BwE NOR NAND Dump Info -
download sempre ultima versione ::..[/URL]
BwE_NOR-NAND_Patcher
[URL="http://betterwayelectronics.com/files/BwE_NOR-NAND_Patcher.rar"]BwE_NOR-NAND_Patcher[/URL]
[URL="http://betterwayelectronics.com/"]fonte[/URL] da cui poter scaricare anche CFW vari
ringrazio zeruel85 per la collaborazione.
